In this post we will try to make Hacth and Gradients or arsiaran on autocad ......,
Immediately, the discussion ..
1. Downliad first Autocad Hatch Draw Here,
2. Upload Draw Hatch into Autocad With AP command, it will appear bleak picture below, locate the file and upload into AutoCAD by clicking Load, and close after succses ...
3. After making the type of DHA and Draw Close Hatch, it would appear boundary line shading that will be created,
4. Make an Hatch in the limit as you want, examples of the form V
5. Type the DHA will appear, and click select, and block on the line of the Hatch plan, and click View to see the results, and its size can be adjusted on the "Sides, factor dam Limit '.
6. Click Write if the results are in accordance to your wishes to store the result in the form of Extension Pat, and save it in a folder, "name it as you want",
7. Type OP and enter, click Files, click File Support Part Seach, and click ADD, Browser into the location of this file and select the folder Pat Extension and ok ,, Finish earlier stage of manufacture: D ,,
8. Open the Hatch and click swath and click Custom to see results
Done ..: DDD
Good luck,
When less understand please in the comments: D
Immediately, the discussion ..
1. Downliad first Autocad Hatch Draw Here,

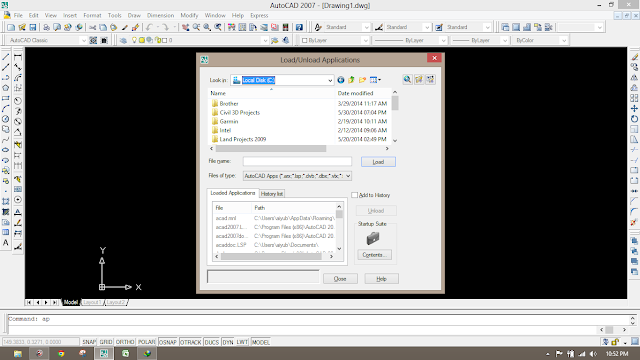

2. Upload Draw Hatch into Autocad With AP command, it will appear bleak picture below, locate the file and upload into AutoCAD by clicking Load, and close after succses ...
 |
| views AP |
 |
| Draw display Hacth |
 |
| Hatch limit the display to be created |
4. Make an Hatch in the limit as you want, examples of the form V
5. Type the DHA will appear, and click select, and block on the line of the Hatch plan, and click View to see the results, and its size can be adjusted on the "Sides, factor dam Limit '.
6. Click Write if the results are in accordance to your wishes to store the result in the form of Extension Pat, and save it in a folder, "name it as you want",
7. Type OP and enter, click Files, click File Support Part Seach, and click ADD, Browser into the location of this file and select the folder Pat Extension and ok ,, Finish earlier stage of manufacture: D ,,
8. Open the Hatch and click swath and click Custom to see results
Done ..: DDD
Good luck,
When less understand please in the comments: D
