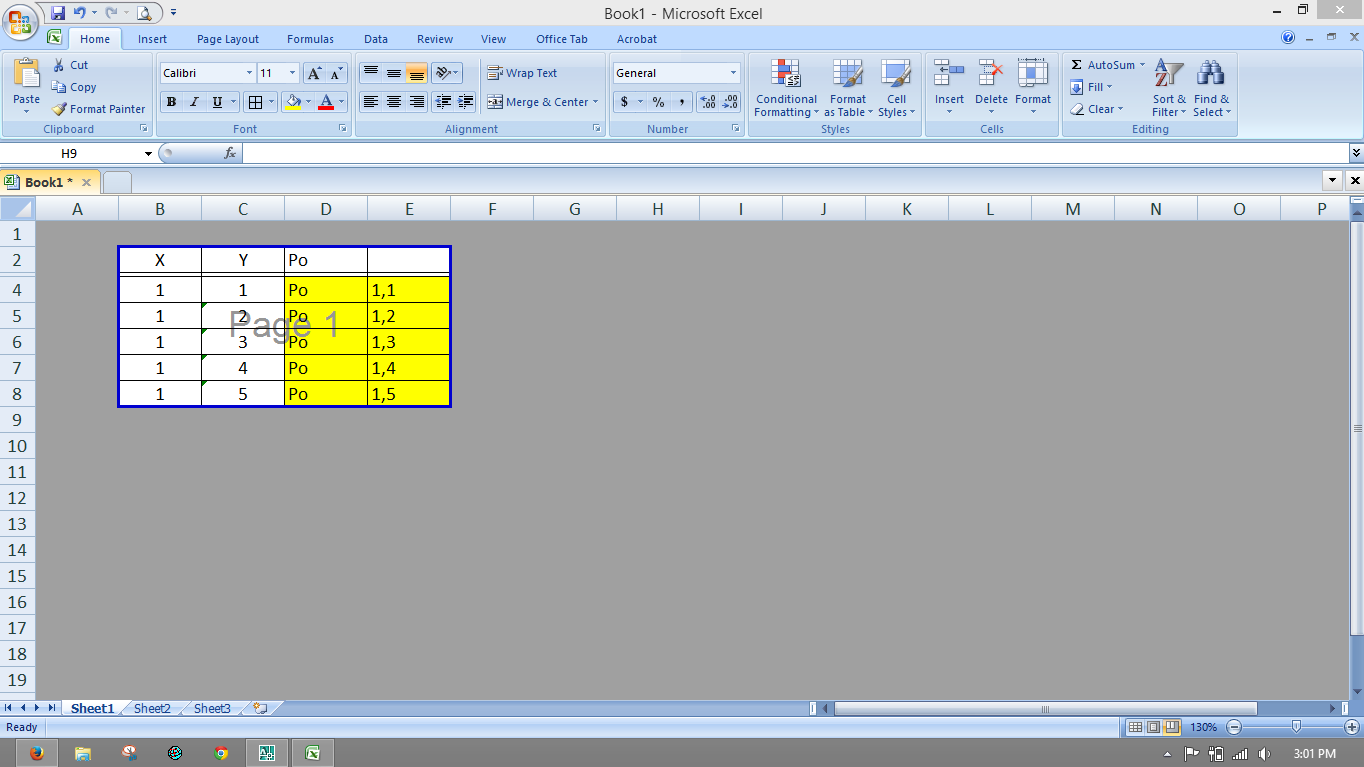

Create Excle coordinates as below
The formula is used:
= CONCATENATE (A2, ",", B2)
description:
A2 = the value of X
"," = Separation between the X and Y (comma)
B2 = value Y
1. Block all cell AGA give a yellow color ranging from D4 to E8.
The formula is used:
= CONCATENATE (A2, ",", B2)
description:
A2 = the value of X
"," = Separation between the X and Y (comma)
B2 = value Y
1. Block all cell AGA give a yellow color ranging from D4 to E8.
2. Right-click, Copy or can also CTRL + C.3. Open the worksheet AutoCAD, and then paste it into the Command Bar AutoCAD (see figure below).
4. Do a Zoom All in AutoCAD, how in the command bar type Z enter, type A enter.
5. If the image or the coordinates of the point you do not show up, try to change the Point Style on your worksheet, how to open the format menu, Point Style.
6. Choose the shape / type of point and adjust the size as you wish.
